- Engineered with a striking red-and-black color scheme for a premium, high-end appearance.Integrated high-performance ceramic bearings ensure smooth operation, reduced friction, and extended lifespan even under intense wear.
- Compact and featherlight design optimizes power-to-weight ratios, delivering explosive acceleration and seamless integration into 2"-4" micro chassis.Ideal for drones, mini RC cars, and robotics requiring agility without compromising torque.
- High-efficiency 3-phase winding and 4-pole rotor technology provide consistent 3000 RPM/V output, balancing speed and torque for responsive control in competitive scenarios.
- Advanced brushless design eliminates carbon wear, reducing noise by 40% compared to brushed motors while requiring zero maintenance—perfect for noise-sensitive environments like indoor racing or medical devices.
Specifications

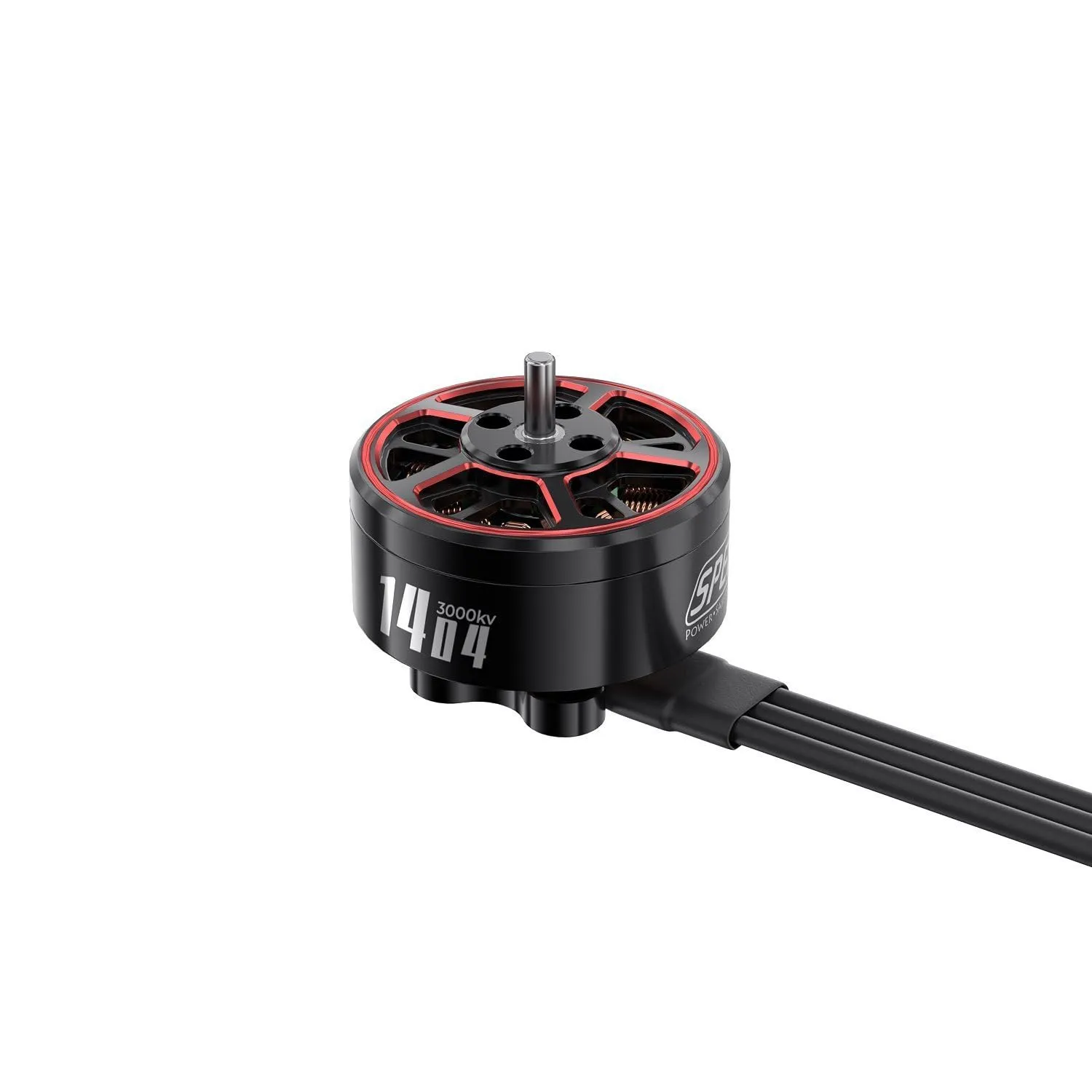

SPEEDX2 1404 3000KV Motor
- Model: SPEEDX2 1404 3000KV Motor
- Max Watt: 160W
- Peak current: 10A/3″
- Interphase resistance: 0.33Ω
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 9N12P
- Dimension: φ18.2mm*13.8mm
- Shaft Diameter: φ1.5mm
- Shaft Protruding Length: 4mm
- Mounting holes: 9mm*9mm（M2）
- Lead: 160mm/26AWG
- ESC: 12A/2-4S（7.4V-14.8V）
- Input Volts: 14.8V（4S LiPo)
- Winding: Single strand copper winding
- Weight: 10.5g (included wire)
- Suitable for: 3 inch – 4 inch lightweight models
Include
1 x SPEEDX2 1404 Motor
- Package Dimensions : 2.6 x 2.2 x 1.69 inches; 0.37 ounces
- Date First Available : May 15, 2025
- Manufacturer : GEPRC
- Country of Origin : China
