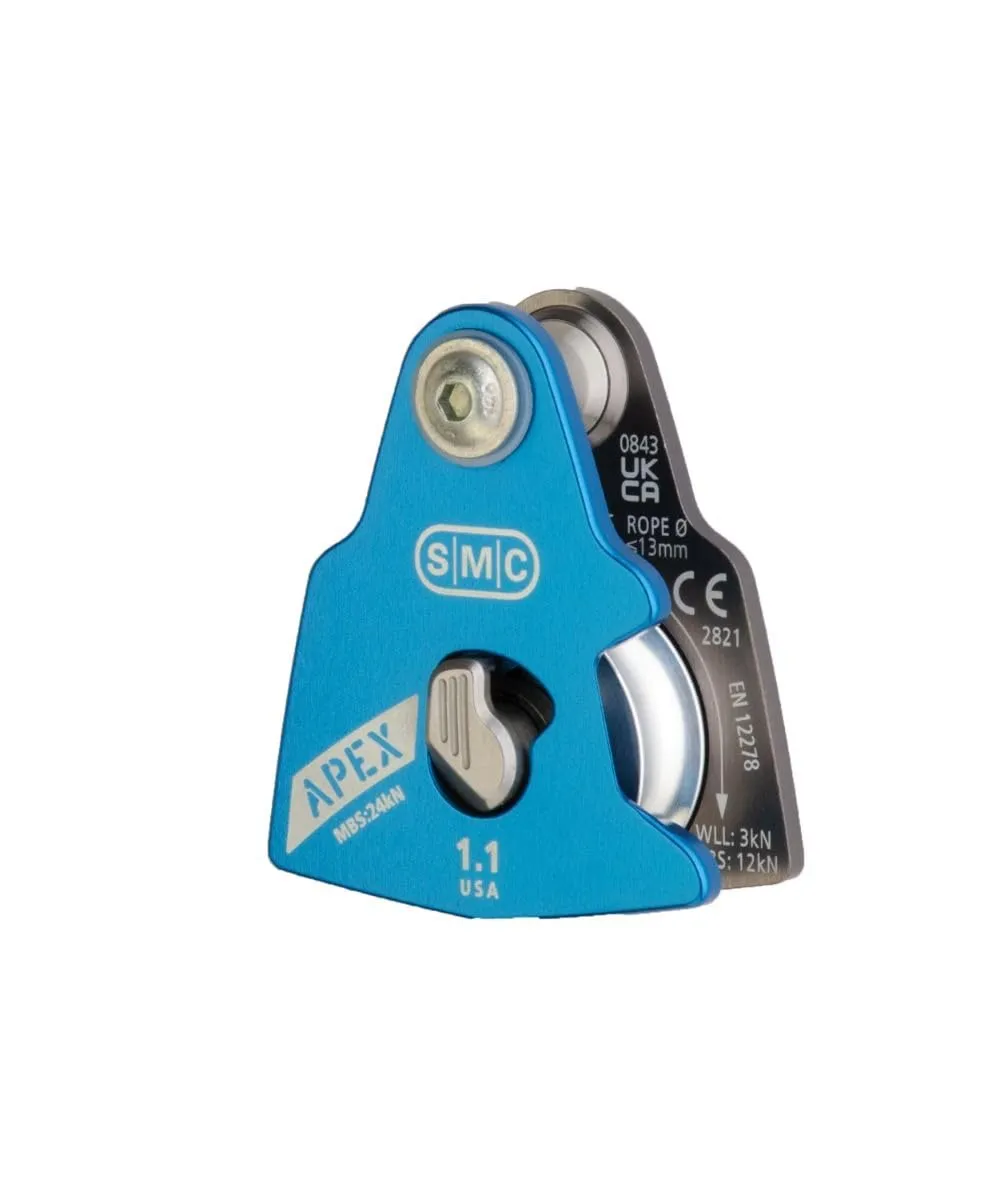

Apex Direct 1.1 The Apex Direct is SMC’s fresh approach to the conventional pulley. It’s specifically designed to be used with soft attachments like prusiks, slings, and soft shackles. Used in this manner, the Apex Direct aligns the rope with the direction of the pull just like a swivel pulley does. It’s compact and over 50% lighter than a comparable swivel pulley/locking carabiner combination. The Apex Direct is mid-line attachable and features one handed operation that utilizes a low-profile, patented, triple-action lock mechanism. This lock is operated by three distinct actions: pivot the lock button, depress it, then swing open the side plate. Simply closing the side plate re-engages the lock mechanism and solidly secures the rope. The operation is intuitive and ergonomic. Model #: 165010 Features: Efficient sealed bearings PMP side plates - designed to be prusik minding Material: Aluminum, Stainless Steel Finish: Anodized, Blue/Grey Dimensions: 2.8” x 2.34” Weight: 4.3oz (122g) MBS: 24kN WLL: 6kN Rope size: up to 13mm Apex 1.1 Sheave Major Diameter: 1.5” Apex 1.1 Sheave Tread Diameter: 1.1” Sheave Material: Aluminum MADE IN USA

• Package Dimensions ‏ : ‎ 9.5 x 5 x 1 inches; 10.88 ounces
• Date First Available ‏ : ‎ August 22, 2023
• Manufacturer ‏ : ‎ Seattle Manufacturing Corporation
